Create & Edit Inventory Label Forms

Slab Label Forms are used to print Slab Labels. Create Label Forms to match pre-cut adhesive label sheets, or print on plain paper. Define different Label Forms for different label sheets, Slab Material, or paper, however you organize and label your Slabs.

After a Label Form has been created, it can be edited at any time by clicking on the underlined Label Form Name under Settings > Labels.

CREATE A LABEL FORM

1. Go to Settings > Labels.

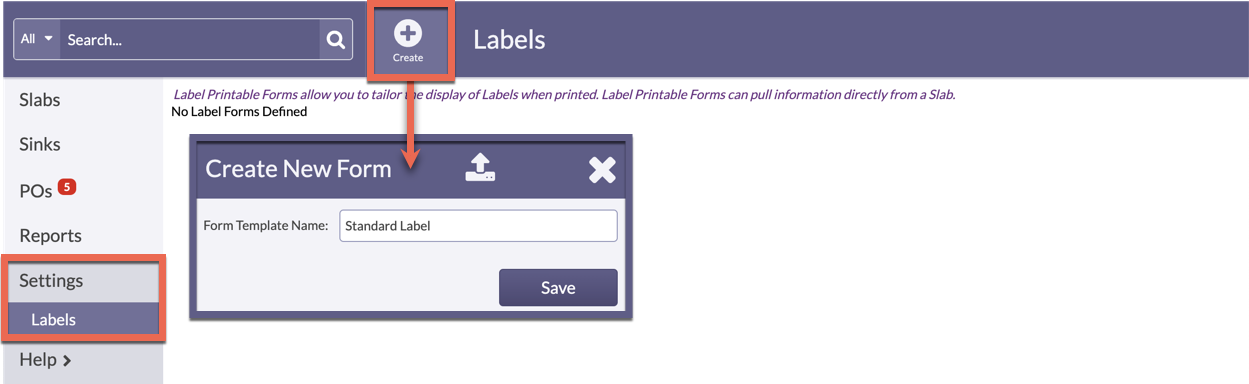

2. Click the Create Label Form button from the top navigation > enter a Name.

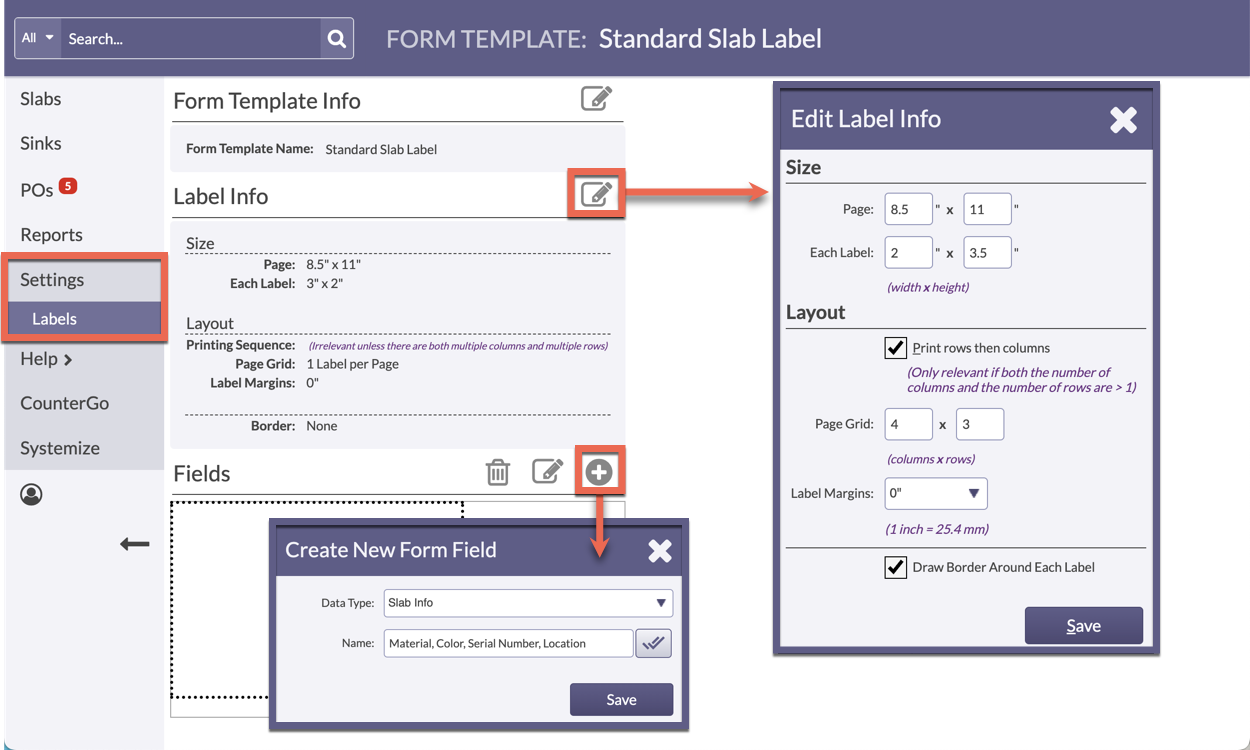

3. Click the Edit icon across from Label Info to enter Label Size and Layout Dimensions. Select to draw a border around each individual Label if necessary > Save.
4. Click the Add icon across from Fields > Select a Data Type from the listed options > next to Name select Fields to include from the drop-down list, or click the Multiple button to choose several at once > Save.

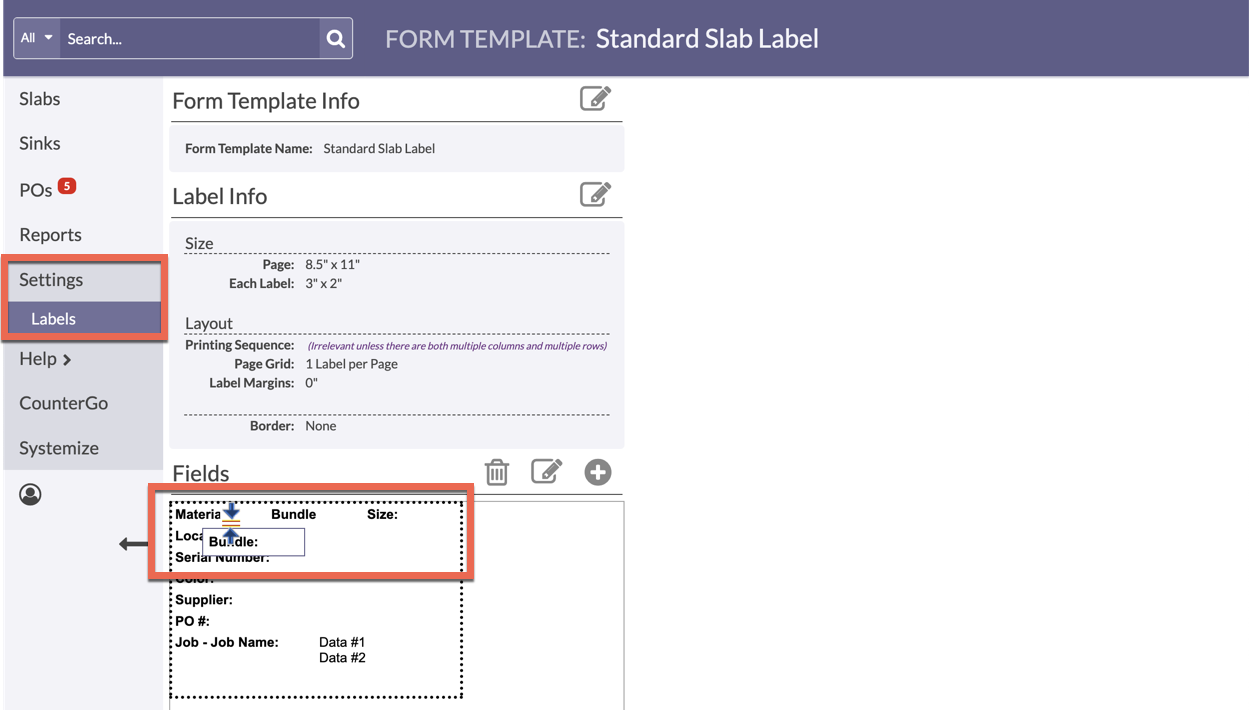

5. Click, hold, and drag individual Form Fields to rearrange them within the Label area.

EDIT FORM FIELDS

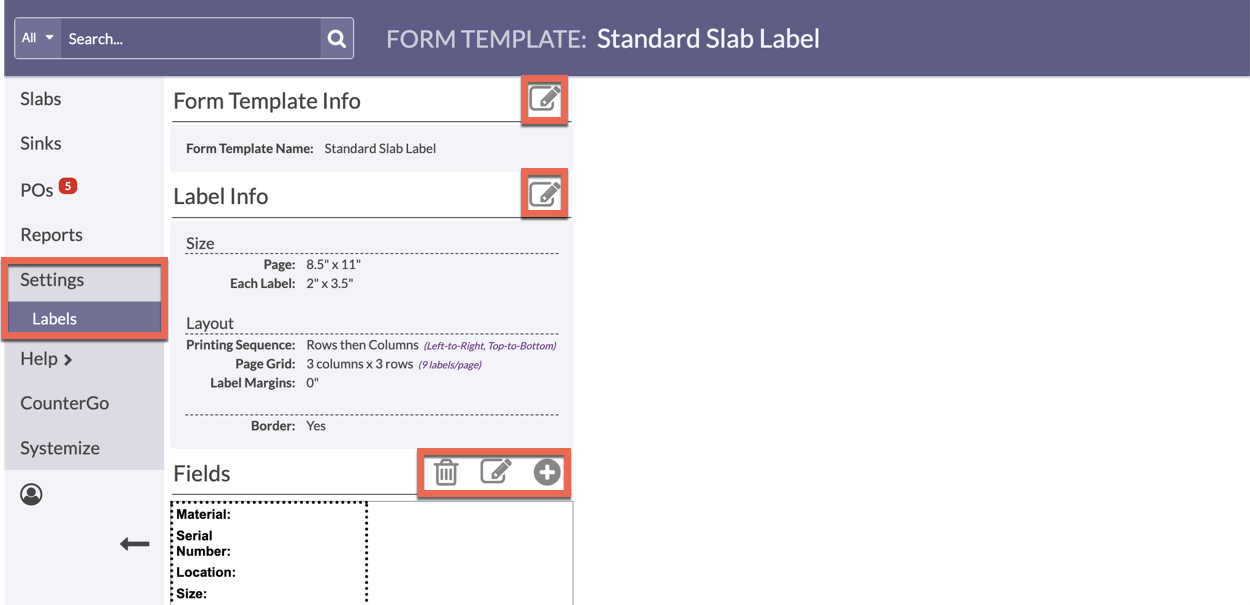

1. Go to Settings > Labels > click on the Name of the Label Form to edit.
2. Use the Edit, Add, or Delete icons next to each area to make changes.
3. After clicking Save in individual areas, the changes have been saved for the entire Form. Use the side and top navigation to return to Inventory.
